Detailed Design
Requested By: Dr. Scott Hunter
Assistant Professor of Computer Science
Computer Science Department of
Ms. Jami Cotler
Instructor/Lecturer of Computer Science
Computer Science Department of
Dr. Tim Lederman
Professor of Computer Science
Computer Science Department of
Automated Excel Grading System
Oasis Technologies
Prepared By:
Brian Salmon
Jim Dzembo
Vincent Leone
Chris Mahar
Josh Yerkie
Automated Excel Grading System
I. Product
Overview and Summary
II. User Displays,
Report Formats, and User Command Summaries
Course
Administrator Homepage:
Course
Administrator View Labs:
Course
Administrator View All Students:
Course
Administrator Edit Student:
Course
Administrator View All Instructors:
Course
Administrator View All Instructors:
Course
Administrator Edit Instructor:
Course
Administrator Create Instructor Page:
Course
Administrator Upload Lab Keys:
Course
Administrator Set Lab/Lecture Sections:
Course
Administrator Edit Lab/Lecture Section:
Course
Administrator View Admin Account:
Course
Administrator Change Admin Password:
Course
Administrator Change Admin:
III. Detailed Data
Flow Diagrams
VI. Logical Format
of Data Files and Databases
IX. Subprogram
Interface Specifications
X. Documentation
Prologue for Each Routine
XI. Pseudo Code
For Each Routine
XII. Physical Data
Structures and Data File Specifications
XIII. Packaging
Specifications
I. Product
Overview and Summary
II. User
Displays, Report Formats, and User Command Summaries
**Note: All screens can be accessed as HTML pages by going to the following url:
http://oraserv.cs.siena.edu/~perm_oasis/prototype/NewPrototype
Login/
Miscellaneous Views
This is a view that all users will see when first loading the website. It is where all users will enter their username and password. If student's have not already set up their account, they can click on the "Register Here" link which will take them to the Register View. They can also recover their password from here if they forgot it.
This is the view students will see when attempting to create an account. They will fill in their Name, Password twice for verification, Lecture Section, Lab Section, and E-Mail Address and then click on a "Register" button to finish their registration.
This screen is where you fill out you’re: name, username, and e-mail address. Then an email will be sent to the user with their password.
This screen is displayed when you enter an invalid username or password.
This
is a view of what the students will see when they log into the system. There
are two buttons they can click. One will bring them to their pre-labs home page
and the other to their labs home page.
This
screen is where the student views their lab grades. If they click the
“View Errors” button, it will allow them to download their submitted lab with
comments in cells where errors were made. It will display all lab files associated with
each lab and the corresponding grades. It will also display a button to
upload new labs and a button to view the errors from the lab.
This screen is where a student can upload their lab files.
This screen is where the student views their pre-labs. It will display all pre-lab files associated with each lab and the corresponding grades. It will also display a button to upload new pre-labs and a button to view the errors from the lab.
This screen is where the students can upload their pre-lab files.
This is the area where Lab Instructors will be able to decide which grades they want to view. They will first select which students they want to see: either a single lab section or all of their lab sections. Then they will select if they want to view all labs or a specific lab.
This is where the grades selected in Lab Instructor View 1 are displayed. This is where Lab Instructors can choose to view the graded files, approve the grades and also change the grade if necessary. If the “View Errors” button is clicked, the Lab Instructor View Errors page loads. If the “View Lab” button is clicked, the submitted lab can be downloaded.
This is the error report that the lab instructor sees. It has everything that was marked incorrect from the excel file including the error that the student receives and the points received and possible for each error made. Lab Instructors can edit the error message the student see’s and also change the points earned for each file submitted.
This is the area where Lecture Instructors will be able to decide what they want to view. They will first select which students they want to see: either a single lecture section or all of their lecture sections. Then they will select if they want to view all labs or a specific lab.
This is where the selected lab grades are displayed. The lecture instructor can view the submitted lab in excel and can also view the error report to the corresponding lab on an HTML page.
Course Administrator Homepage:
This is the area where the Course Administrator will be able to decide what they want to view. They will first select which students they want to see: a single lab section, a single lecture session, or all students. Then they will select if they want to view all labs or a specific lab. Also from here, Course Administrators can navigate to the various other screens where other features are implemented.
Course Administrator View Labs:
This is where selected lab grades are displayed and the final grades are displayed and may be changed if necessary. If the “View Errors” button is clicked, the Lab Instructor View Errors page loads. If the “View Lab” button is clicked, the submitted lab can be downloaded.
Course Administrator View All Students:
This screen is where the Course Administrator can view all Students in the system. The Students name, Lab Section, and Lecture Section. If the “Edit” button is clicked, the “Course Administrator Edit Student” page loads for the selected student. If the “Delete” button is clicked, the selected student is removed from the system. If the “Delete All Students” button is clicked, all students are removed from the system.
Course Administrator Edit
Student:
When the Course Administrator chooses view all students then clicks the edit button, this screen will show everything stored on this particular students account in separate fields. The Course Administrator will be able to change any of these fields. These fields include Name, Username, Password, Lecture Section, Lab Section, and E-Mail Address.
Course
Administrator View All Instructors:
This screen is where Course Administrators are able to view all of the instructors. This screen displays the Instructors name and the type of Instructor they are (Lab or Lecture). If the “Edit” button is clicked, the “Course Administrator Edit Instructor” page loads. If the “Delete” button is clicked, the selected Instructor is removed from the system. If the “Delete All Instructors” button is clicked, all Instructors are removed from the system.
Course Administrator Edit Instructor:
This screen allows the Course Administrator to change the instructor’s information. It displays changeable text boxes containing the selected Instructors Name, Password, and Email address along with a drop down menu for the type of Instructor this Instructor is.
Course Administrator Create Instructor Page:
This screen is where the Course Administrator can create a new instructor account. Here, Course Administrators enter information about Instructors including Name, Type of Instructor, Password (twice for verification), and E-Mail Address.
Course Administrator Upload Lab
Keys:
This screen is where the Course Administrator can upload Answer Keys and Sample Files for the labs. They simply fill out the Lab Number field, and then click the “Browse” button for each of the Sample Files and then for the Grading Key and then click “Submit Files”
Course Administrator Set
Lab/Lecture Sections:
This screen is where the Course Administrator can view each Section with the Instructor of that Section, the Section Type, and the Semester this Section is being taught. If the “Edit” button is clicked, the “Course Administrator Edit Lab/Lecture Section” page is loaded. If the “Delete” button is clicked, the selected Section is removed from the system.
Course Administrator Edit
Lab/Lecture Section:
This screen is where the Course Administrator can change the information about any Section. Displayed in text boxes are the selected Sections information including the Instructors Name and E-Mail Address along with the Section Number, Section Type, and the Semester that it is taught. The Course Administrator can change any of these fields and then click the “Register” button to change the section appropriately.
Course Administrator View Admin
Account:
This screen displays the Course Administrators Name and E-Mail Address and has buttons for changing their own password and for setting the Course Administrator account to a different person. If the “Change Password” button is clicked, the “Course Administrator Change Admin Password” page loads. If the “Change Administrator” button is clicked, the “Course Administrator Change Admin” page is loaded.
Course Administrator Change
Admin Password:
This screen is where the Course Administrator can change his or her own password. They first enter their current password and then enter their new password twice for verification and then click the “Submit Changes” button.
Course Administrator Change
Admin:
This screen is where the Course Administrator account can be set to a different person. The current Course Administrator must fill out the new Course Administrators Name, Password (twice for verification) and their E-Mail Address and then click the “Register” button. Once they log out, the only way to log on as Course Administrator will be with the new Course Administrators information.
III. Detailed Data Flow Diagrams
Lab Files Data Flow
Source: Student
Destination: Automated Excel Grading System
Description: Lab files will be submitted to the system.
Grade Data Flow
Source: Automated Excel Grading System
Destination: Student
Description: The grades of the lab or pre-labs will be viewed by the student.
Corrected Grades Data Flow
Source: Lab Instructor
Destination: Automated Excel Grading System
Description: The lab instructor will send the verified or corrected grades to the
system.
Grades Data Flow
Source: Automated Excel Grading System
Destination: Lab Instructor
Description: The unverified grades will be viewed by the lab instructor.
Lab Files Data Flow
Source: Automated Excel Grading System
Destination: Lab Instructor
Description: The lab instructor will be able to view the student’s submitted files.
Lab Grades Data Flow
Source: Automated Excel Grading System
Destination: Lecture Instructor
Description: The lecture instructor can view the student’s lab grades.
Grading Key Data Flow
Source: Course Administrator
Destination: Automated Excel Grading System
Description: The course administrator will submit the key for grading.
Student Info Data Flow
Source: Automated Excel Grading System
Destination: Course Administrator
Description: The course administrator can view each student’s information.
Grades Data Flow
Source: Automated Excel Grading System
Destination: Course Administrator
Description: The course administrator can view each student’s grades.
Lab Files Data Flow
Source: Database
Destination: Automated Excel Grading System
Description: The system will retrieve each student’s submitted files from the
database.
Lab Files Data Flow
Source: Automated Excel Grading System
Destination: Database
Description: The system will send all the student’s files to the database when
submitted.
Student Source/Sink
Input Flows: Grade
Output Flows: Lab Files
Description: Student that is enrolled in a lab section.
Lab Instructor Source/Sink
Input Flows: Grade, Lab Files
Output Flows: Corrected Grades
Description: Instructor of one or multiple lab sections. Must verify/correct all
grades, and can view each student’s submitted files.
Lecture Instructor Source/Sink
Input Flows: Lab Grades
Description: Instructor of one or multiple lecture sections. Can view each
student’s grades for labs.
Course Administrator Source/Sink
Input Flows: Student Info, Grades
Output Flows: Grading Key
Description: The administrator of the Excel Course. Can submit the grading key
and view student information and grades.
Database Data Store
Input Flows: Lab Files
Output Flows: Lab Files
Description: Database containing usernames, passwords, submitted lab files,
graded lab files, grading key, and the grading template.

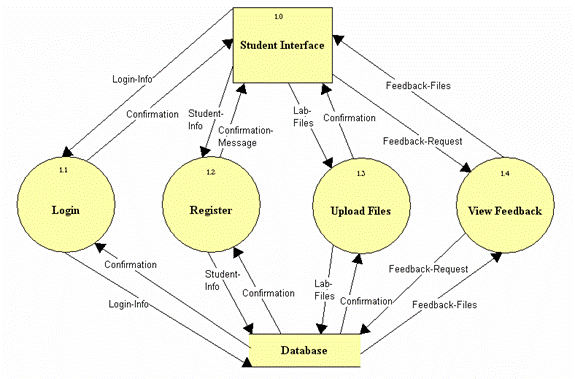

Location – Student –
Level 1.0
Login Info Data Flow
Source: Student Interface
Destination: Login
Description: Username and password for student.
Confirmation Data Flow
Source: Login
Destination: Student Interface
Description: Acceptance or rejection of login info.
Student Info Data Flow
Source: Student Interface
Destination: Register
Description: Student’s registration information.
Confirmation Message Data Flow
Source: Register
Destination: Student Interface
Description: Confirmation sent to the student to confirm registration.
Lab Files Data Flow
Source: Student Interface
Destination: Upload Files
Description: Student’s completed lab file.
Confirmation Data Flow
Source: Upload Files
Destination: Student Interface
Description: Confirmation that lab file has been submitted successfully.
Feedback Request Data Flow
Source: Student Interface
Destination: View Feedback
Description: Request for feedback on the submitted lab files.
Feedback Files Data Flow
Source: View Feedback
Destination: Student Interface
Description: Feedback on lab files after grading system completion and lab
instructor verification.
Login Info Data Flow
Source: Login
Destination: Database
Description: Username and password for student.
Confirmation Data Flow
Source: Database
Destination: Login
Description: Acceptance or rejection of login info.
Student Info Data Flow
Source: Register
Destination: Database
Description: Student’s registration information.
Confirmation Message Data Flow
Source: Database
Destination: Register
Description: Confirmation of successful registration.
Lab Files Data Flow
Source: Upload Files
Destination: Database
Description: Student’s completed lab file.
Confirmation Data Flow
Source: Database
Destination: Upload Files
Description: Confirmation that lab file has been submitted successfully.
Feedback Request Data Flow
Source: View Feedback
Destination: Database
Description: Request for feedback on the submitted lab files.
Feedback Files Data Flow
Source: Database
Destination: View Feedback
Description: Feedback on lab files after grading system completion and lab
instructor verification.
Student Interface Source/Sink
Input Flows: Confirmation, Confirmation Message, Confirmation, Feedback Files
Output Flows: Login Info, Student Info, Lab Files, Feedback Request
Description: Student’s web interface with which they will be able to
login, register, upload files, and view feedback.
Login Process
Input Flows: Login Info, Confirmation
Output Flows: Confirmation, Login Info
Description: This process will check the login info against the database and
determine whether it is correct or incorrect.
Register Process
Input Flows: Student Info, Confirmation
Output Flows: Confirmation Message, Student Info
Description: The student’s will register themselves into the grading system.
Upload Files Process
Input Flows: Lab Files, Confirmation
Output Flows: Confirmation, Lab Files
Description: Student’s will upload their completed lab files into the system for
grading.
View Feedback Process
Input Flows: Feedback Request, Feedback Files
Output Flows: Feedback Files, Feedback Request
Description: Displays student’s feedback on submitted lab files.
Database Data Store
Input Flows: Login Info, Student Info, Lab Files, Feedback Request
Output Flows: Confirmation, Confirmation, Confirmation, Feedback Files
Description: Database containing usernames, passwords, submitted lab files,
graded lab files, grading key, and the grading template.
Location – Lab
Instructor – Level 2.0
Login Info Data Flow
Source: Lab Instructor Interface
Destination: Login
Description: Username and password for lab instructor.
Confirmation Data Flow
Source: Login
Destination: Lab Instructor Interface
Description: Acceptance or rejection of login info.
Sort Criteria Data Flow
Source: Lab Instructor Interface
Destination: Sort by
Description: The method which the lab instructor would like to sort students
by.
Sort Results Data Flow
Source: Sort by
Destination: Lab Instructor Interface
Description: The resulting list of students determined by the selected sort criteria.
Open Error Report Data Flow
Source: Lab Instructor Interface
Destination: Edit Error Report
Description: Request to open error report generated by the system.
Confirmation Data Flow
Source: Edit Error Report
Destination: Lab Instructor Interface
Description: Confirmation that edited error report has been successfully
submitted.
Approve Grade Request Data Flow
Source: Lab Instructor Interface
Destination: Approve Grades
Description: Request to approve grades generated by the system.
Confirmation Data Flow
Source: Approve Grades
Destination: Lab Instructor Interface
Description: Confirmation that approved grades have been successfully
submitted.
Feedback Request Data Flow
Source: View Feedback
Destination: Lab Instructor Interface
Description: Request to view feedback generated by grading system.
Feedback Files Data Flow
Source: View Feedback
Destination: Lab Instructor Interface
Description: Feedback generated by the grading system.
Login Info Data Flow
Source: Login
Destination: Database
Description: Username and password for lab instructor.
Confirmation Data Flow
Source: Database
Destination: Login
Description: Acceptance or rejection of login info.
Sort Criteria Data Flow
Source: Sort By
Destination: Database
Description: The method which the lab instructor would like to sort students
by.
Sort Results Data Flow
Source: Database
Destination: Sort By
Description: The resulting list of students determined by the selected sort criteria.
Edited Error Report Data Flow
Source: Edit Error Report
Destination: Database
Description: Error report that has been edited by lab instructor.
Confirmation Data Flow
Source: Database
Destination: Edit Error Report
Description: Confirmation that edited error report has been submitted
successfully.
Approved Grades Data Flow
Source: Approve Grades
Destination: Database
Description: Grades that have been approved by Lab Instructor.
Confirmation Data Flow
Source: Database
Destination: Approve Grades
Description: Confirmation that approved grades have been submitted
successfully.
Feedback Request Data Flow
Source: View Feedback
Destination: Database
Description: Request to view feedback generated by grading system.
Feedback Files Data Flow
Source: View Feedback
Destination: Database
Description: Feedback files that have been generated by grading system.
Lab Instructor Interface Source/Sink
Input Flows: Confirmation, Sort Results, Confirmation, Confirmation, Feedback
Files
Output Flows: Login Info, Sort Criteria, Open Error Report, Approve Grade
Request, Feedback Request
Description: Lab instructors web interface with which they will be able to
login, sort students, edit error reports, approve student grades, and
view feedback generated by the grading system.
Login Process
Input Flows: Login Info, Confirmation
Output Flows: Confirmation, Login Info
Description: This process will check the login info against the database and
determine whether it is correct or incorrect.
Sort By Process
Input Flows: Sort Criteria, Sort Results
Output Flows: Sort Results, Sort Criteria
Description: This process will send the sort criteria to the database and take the
resulting student list and send it to the lab instructor interface.
Edit Error Report Process
Input Flows: Open Error Report, Confirmation
Output Flows: Edited Error Report, Confirmation
Description: This process is where the lab instructor will be able to edit the error
report generated by the grading system.
Approve Grades Process
Input Flows: Approve Grade Request, Confirmation
Output Flows: Confirmation, Approved Grades
Description: This process is where the lab instructor will approve the grades
generated by the grading system.
View Feedback Process
Input Flows: Feedback Request, Feedback Files
Output Flows: Feedback Files, Feedback Request
Description: Displays the feedback generated by the grading system to the lab
instructor.
Database Data Store
Input Flows: Login Info, Sort Criteria, Edited Error Report, Approved Grades,
Feedback Request
Output Flows: Confirmation, Sort Results, Confirmation, Confirmation, Feedback
Files
Description: Database containing usernames, passwords, submitted lab files,
graded lab files, grading key, and the grading template.
Location – Lecture
Instructor – Level 3.0
Login Info Data Flow
Source: Lecture Instructor Interface
Destination: Login
Description: Username and password for lecture instructor.
Confirmation Data Flow
Source: Login
Destination: Lecture Instructor Interface
Description: Acceptance or rejection of login info.
Sort Criteria Data Flow
Source: Lecture Instructor Interface
Destination: Sort by
Description: The method which the lecture instructor would like to sort students
by.
Student List Data Flow
Source: Sort by
Destination: Lecture Instructor Interface
Description: The resulting list of students determined by the selected sort criteria.
Grade Request Data Flow
Source: Lecture Instructor Interface
Destination: View Feedback
Description: The request to view student’s grades generated by the system.
Grades Data Flow
Source: View Feedback
Destination: Lecture Instructor Interface
Description: The grades generated by the system for viewing by the lecture
instructor.
Grade Request Data Flow
Source: View Feedback
Destination: Database
Description: The request to retrieve student’s grades generated by the system.
Grades Data Flow
Source: Database
Destination: View Feedback
Description: The grades generated by the system for viewing by the lecture
instructor.
Sort Criteria Data Flow
Source: Sort by
Destination: Database
Description: The method which the lecture instructor would like to sort students
by.
Student List Data Flow
Source: Database
Destination: Sort by
Description: The resulting list of students determined by the selected sort criteria.
Login Info Data Flow
Source: Login
Destination: Database
Description: Username and password for lecture instructor.
Confirmation Data Flow
Source: Database
Destination: Login
Description: Acceptance or rejection of login info.
Lecture Instructor Interface Source/Sink
Input Flows: Grades, Confirmation, Student List
Output Flows: Grade Request, Login Info, Sort Criteria
Description: Lecture instructors web interface with which they will be able to
login, view student’s grades, and sort students.
Login Process
Input Flows: Login Info, Confirmation
Output Flows: Confirmation, Login Info
Description: This process will check the login info against the database and
determine whether it is correct or incorrect.
Sort By Process
Input Flows: Sort Criteria, Student List
Output Flows: Student List, Sort Criteria
Description: This process will send the sort criteria to the database and take the
resulting student list and send it to the lecture instructor interface.
View Feedback Process
Input Flows: Grade Request, Grades
Output Flows: Grades, Grade Request
Description: This process will get the requested student grades from the database
and send them to the lecture instructor interface.
Database Data Store
Input Flows: Login Info, Sort Criteria, Grade Request
Output Flows: Confirmation, Student List, Grades
Description: Database containing usernames, passwords, submitted lab files,
graded lab files, grading key, and the grading template.
Location – Course
Administrator – Level 4.0
Login Info Data Flow
Source: Course Administrator Interface
Destination: Login
Description: Username and password for course administrator.
Confirmation Data Flow
Source: Login
Destination: Course Administrator Interface
Description: Acceptance or rejection of login info.
Sort Criteria Data Flow
Source: Course Administrator Interface
Destination: Sort by
Description: The method which the course administrator would like to sort
students by.
Sort Results Data Flow
Source: Sort by
Destination: Course Administrator Interface
Description: The resulting list of students determined by the selected sort criteria.
Student Info Data Flow
Source: Course Administrator Interface
Destination: Edit Student Info
Description: Student’s edited information.
Confirmation Data Flow
Source: Edit Student Info
Destination: Course Administrator Interface
Description: Confirmation that the student’s information has been submitted
successfully.
Student Info Data Flow
Source: Course Administrator Interface
Destination: Manage Sections
Description: Student’s edited section information.
Confirmation Data Flow
Source: Manage Sections
Destination: Course Administrator Interface
Description: Confirmation that student’s edited section information has been
submitted successfully.
Instructor Info Data Flow
Source: Course Administrator Interface
Destination: Register
Description: Instructor’s information for registration as an instructor.
Confirmation Data Flow
Source: Register
Destination: Course Administrator Interface
Description: Confirmation that the instructor has been successfully registered.
Search Criteria Data Flow
Source: Course Administrator Interface
Destination: Search
Description: Criteria that course administrator would like to search for.
Search Results Data Flow
Source: Search
Destination: Course Administrator Interface
Description: Results after search is processed using search criteria.
Key Files Data Flow
Source: Course Administrator Interface
Destination: Upload Files
Description: Key file which will be used for grading by the system.
Confirmation Data Flow
Source: Upload Files
Destination: Course Administrator Interface
Description: Confirmation that key file has been successfully submitted.
Password Data Flow
Source: Course Administrator Interface
Destination: Create Course Password
Description: Password which will be used to register students for the course.
Confirmation Data Flow
Source: Create Course Password
Destination: Course Administrator Interface
Description: Confirmation that password has been successfully created.
Feedback Request Data Flow
Source: Course Administrator Interface
Destination: View Feedback
Description: Request to view feedback generated by the grading system.
Feedback Files Data Flow
Source: View Feedback
Destination: Course Administrator Interface
Description: Feedback generated by the grading system.
Login Info Data Flow
Source: Login
Destination: Database
Description: Username and password for course administrator.
Confirmation Data Flow
Source: Database
Destination: Login
Description: Acceptance or rejection of login info.
Sort Criteria Data Flow
Source: Sort By
Destination: Database
Description: The method which the course instructor would like to sort students
by.
Sort Results Data Flow
Source: Database
Destination: Sort By
Description: The resulting list of students determined by the selected sort criteria.
Student Info Data Flow
Source: Edit Student Info
Destination: Database
Description: Student’s edited information.
Confirmation Data Flow
Source: Database
Destination: Edit Student Info
Description: Confirmation that the student’s information has been submitted
successfully.
Student Info Data Flow
Source: Manage Sections
Destination: Database
Description: Student’s edited section information.
Confirmation Data Flow
Source: Database
Destination: Manage Sections
Description: Confirmation that student’s edited section information has been
submitted successfully.
Instructor Info Data Flow
Source: Register
Destination: Database
Description: Instructor’s information for registration as an instructor.
Confirmation Data Flow
Source: Database
Destination: Register
Description: Confirmation that the instructor has been successfully registered.
Search Criteria Data Flow
Source: Search
Destination: Database
Description: Criteria that course administrator would like to search for.
Search Results Data Flow
Source: Database
Destination: Register
Description: Results after search is processed using search criteria.
Key Files Data Flow
Source: Upload Files
Destination: Database
Description: Key file which will be used for grading by the system.
Confirmation Data Flow
Source: Database
Destination: Upload Files
Description: Confirmation that key file has been successfully submitted.
Password Data Flow
Source: Create Course Password
Destination: Database
Description: Password which will be used to register students for the course.
Confirmation Data Flow
Source: Database
Destination: Create Course Password
Description: Confirmation that password has been successfully created.
Feedback Request Data Flow
Source: View Feedback
Destination: Database
Description: Request to view feedback generated by the grading system.
Feedback Files Data Flow
Source: Database
Destination: View Feedback
Description: Feedback generated by the grading system.
Course Administrator Interface Source/Sink
Input Flows: Confirmation, Sort Results, Confirmation, Confirmation,
Confirmation, Search Results, Confirmation, Confirmation,
Feedback Files
Output Flows: Login Info, Sort Criteria, Student Info, Student Info, Instructor
Info, Search Criteria, Key Files, Password, Feedback Request
Description: Course Administrator’s web interface with which they will be able to
login, sort students, edit student information, manage sections,
register instructors, search, upload
files, create the course password,
and view the
feedback generated by the grading system.
Login Process
Input Flows: Login Info, Confirmation
Output Flows: Confirmation, Login Info
Description: This process will check the login info against the database and
determine whether it is correct or incorrect.
Sort By Process
Input Flows: Sort Criteria, Sort Results
Output Flows: Sort Results, Sort Criteria
Description: This process will send the sort criteria to the database and take the
resulting student list and send it to the course administrator interface.
Edit Student Info Process
Input Flows: Student Info, Confirmation
Output Flows: Confirmation, Student Info
Description: This is how the course administrator will edit any student info that is
incorrect.
Manage Sections Process
Input Flows: Student Info, Confirmation
Output Flows: Confirmation, Student Info
Description: This is how the course administrator will change any student’s
section in the system if they switch sections
Register Process
Input Flows: Instructor Info, Confirmation
Output Flows: Confirmation, Instructor Info
Description: This is how the course administrator will register the different
instructors for the course at the beginning of the semester.
Search Process
Input Flows: Search Criteria, Search Results
Output Flows: Search Results, Search Criteria
Description: The course administrator can search for a student if they are not sure
where to quickly find a specific student.
Upload Files Process
Input Flows: Key Files, Confirmation
Output Flows: Confirmation, Key Files
Description: The course administrator will upload the files used by the grading
system to grade and provide feedback on the students labs and pre
labs.
Create Course Password Process
Input Flows: Password, Confirmation
Output Flows: Confirmation, Password
Description: The course administrator will create the password used by the
students when they register for a course so that no students can
register that are not enrolled in the course.
View Feedback Process
Input Flows: Feedback Request, Feedback Files
Output Flows: Feedback Files, Feedback Request
Description: The course administrator will be able to view the feedback generated
by the grading system.
Database Data Store
Input Flows: Login Info, Sort Criteria, Student Info, Student Info, Instructor Info,
Search Criteria, Key Files, Password, Feedback Request
Output Flows: Confirmation, Sort Results, Confirmation, Confirmation,
Confirmation, Search Results, Confirmation, Confirmation,
Feedback Files
Description: Database containing usernames, passwords, submitted lab files,
graded lab files, grading key, and the grading template.
Location – Student –
Login – Level 1.1
Login Info Data Flow
Source: System Login
Destination: Database
Description: Sends student’s login info to database.
Confirmation Data Flow
Source: Database
Destination: System Login
Description: Acceptance or rejection of login info.
Forgot Password Request Data Flow
Source: Forgot Password
Destination: Database
Description: Request for email containing password.
Email With Password Data Flow
Source: Database
Destination: Forgot Password
Description: Email containing student’s password.
System Login Process
Input Flows: Confirmation
Output Flows: Login Info
Description: Confirms or rejects user’s attempt to login with username and
password.
Forgot Password Process
Input Flows: Email with password
Output Flows: Forgot Password Request
Description: Sends user an email containing password.
Database Data Store
Input Flows: Login Info, Forgot Password Request
Output Flows: Confirmation, Email With Password
Description: Database containing usernames, passwords, submitted lab files,
graded lab files, grading key, and the grading template.
Location – Student – Upload
Files – Level 1.3
Lab File Data Flow
Source: Upload Lab
Destination: Database
Description: Student’s completed lab file.
Confirmation Data Flow
Source: Database
Destination: Upload Lab
Description: Confirmation that lab file has been submitted successfully.
Pre Lab File Data Flow
Source: Upload Pre Lab
Destination: Database
Description: Student’s completed pre lab file.
Confirmation Data Flow
Source: Database
Destination: Upload Pre Lab
Description: Confirmation that pre lab file has been submitted successfully.
Upload Lab Process
Input Flows: Confirmation
Output Flows: Lab File
Description: Student uploads completed lab file to system for grading.
Upload Pre Lab Process
Input Flows: Confirmation
Output Flows: Pre Lab File
Description: Student uploads completed pre lab file to system for grading.
Database Data Store
Input Flows: Lab File, Pre Lab File
Output Flows: Confirmation, Confirmation
Description: Database containing usernames, passwords, submitted lab files,
graded lab files, grading key, and the grading template.
Location – Student –
View Feedback – Level 1.4
View File Request Data Flow
Source: View Submitted Files
Destination: Database
Description: Student’s request view previously submitted lab files.
Lab File Data Flow
Source: Database
Destination: View Submitted Files
Description: Student’s previously submitted lab files.
Error Report Request Data Flow
Source: View Error Report
Destination: Database
Description: Request to view error report generated by grading system.
Error Report Data Flow
Source: Database
Destination: View Error Report
Description: Error Report generated by grading system.
View Submitted Files Process
Input Flows: Lab File
Output Flows: View File Request
Description: Displays student’s submitted lab file from database.
View Error Report Process
Input Flows: Error Report
Output Flows: Error Report Request
Description: Displays student’s error report generated by grading system.
Database Data Store
Input Flows: View File Request
Output Flows: Error Report Request
Description: Database containing usernames, passwords, submitted lab files,
graded lab files, grading key, and the grading template.
Location – Lab
Instructor – Login – Level 2.1
Login Info Data Flow
Source: System Login
Destination: Database
Description: Sends lab instructor’s login info to database.
Confirmation Data Flow
Source: Database
Destination: System Login
Description: Acceptance or rejection of login info.
Forgot Password Request Data Flow
Source: Forgot Password
Destination: Database
Description: Request for email containing password.
Email With Password Data Flow
Source: Database
Destination: Forgot Password
Description: Email containing lab instructor’s password.
System Login Process
Input Flows: Confirmation
Output Flows: Login Info
Description: Confirms or rejects user’s attempt to login with username and
password.
Forgot Password Process
Input Flows: Email with password
Output Flows: Forgot Password Request
Description: Sends user an email containing password.
Database Data Store
Input Flows: Login Info, Forgot Password Request
Output Flows: Confirmation, Email With Password
Description: Database containing usernames, passwords, submitted lab files,
graded lab files, grading key, and the grading template.
Location – Lab Instructor
– Sort By – Level 2.2

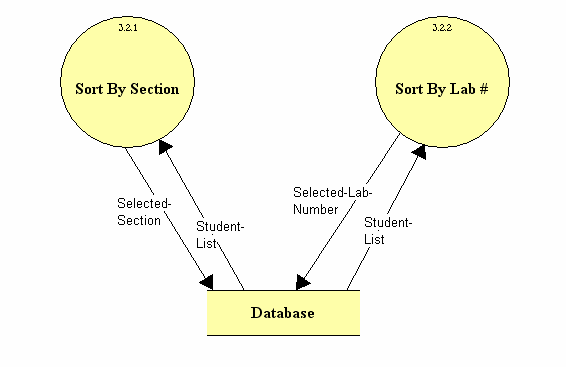

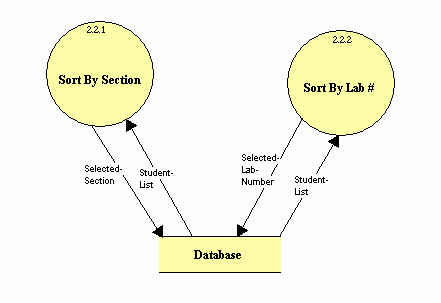

Selected Section Data Flow
Source: Sort By Section
Destination: Database
Description: Selection that lab instructor would like to sort by section.
Student List Data Flow
Source: Database
Destination: Sort By Section
Description: Resulting student list when sorted by section.
Selected Lab Number Data Flow
Source: Sort By Lab #
Destination: Database
Description: Selection that lab instructor would like to sort by lab number.
Student List Data Flow
Source: Database
Destination: Sort By Lab #
Description: Resulting student list when sorted by lab #.
Sort By Section Process
Input Flows: Student List
Output Flows: Selected Section
Description: Sorts all students by their assigned section.
Sort By Lab # Process
Input Flows: Student List
Output Flows: Selected Lab Number
Description: Sorts all students by each assigned lab number.
Database Data Store
Input Flows: Selected Section, Selected Lab Number
Output Flows: Student List, Student List
Description: Database containing usernames, passwords, submitted lab files,
graded lab files, grading key, and the grading template.
Location – Lab
Instructor – View Feedback – Level 2.5

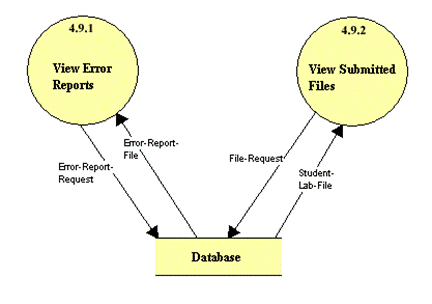

Error Report Request Data Flow
Source: View Error Reports
Destination: Database
Description: Lab Instructor’s request to view student’s error report.
Error Report File Data Flow
Source: Database
Destination: View Error Reports
Description: Student’s error report after grading by the system.
File Request Data Flow
Source: View Submitted Files
Destination: Database
Description: Lab Instructor’s request to view student’s lab files.
Student Lab File Data Flow
Source: Database
Destination: View Submitted Files
Description: Student’s original lab files that were submitted to the system.
View Error Reports Process
Input Flows: Error Report File
Output Flows: Error Report Request
Description: Displays student’s error reports to the lab instructor.
View Submitted Files Process
Input Flows: Student Lab File
Output Flows: File Request
Description: Displays student’s original lab files that were submitted to the
system.
Database Data Store
Input Flows: Error Report Request, File Request
Output Flows: Error Report File, Student Lab File
Description: Database containing usernames, passwords, submitted lab files,
graded lab files, grading key, and the grading template.
Location – Lecture
Instructor – Login – Level 3.1
Login Info Data Flow
Source: System Login
Destination: Database
Description: Sends lecture instructor’s login info to database.
Confirmation Data Flow
Source: Database
Destination: System Login
Description: Acceptance or rejection of login info.
Forgot Password Request Data Flow
Source: Forgot Password
Destination: Database
Description: Request for email containing password.
Email With Password Data Flow
Source: Database
Destination: Forgot Password
Description: Email containing lecture instructor’s password.
System Login Process
Input Flows: Confirmation
Output Flows: Login Info
Description: Confirms or rejects user’s attempt to login with username and
password.
Forgot Password Process
Input Flows: Email with password
Output Flows: Forgot Password Request
Description: Sends user an email containing password.
Database Data Store
Input Flows: Login Info, Forgot Password Request
Output Flows: Confirmation, Email With Password
Description: Database containing usernames, passwords, submitted lab files,
graded lab files, grading key, and the grading template.
Location – Lecture
Instructor – Sort By – Level 3.2
Selected Section Data Flow
Source: Sort By Section
Destination: Database
Description: Selection that lecture instructor would like to sort by section.
Student List Data Flow
Source: Database
Destination: Sort By Section
Description: Resulting student list when sorted by section.
Selected Lab Number Data Flow
Source: Sort By Lab #
Destination: Database
Description: Selection that lecture instructor would like to sort by lab number.
Student List Data Flow
Source: Database
Destination: Sort By Lab #
Description: Resulting student list when sorted by lab #.
Sort By Section Process
Input Flows: Student List
Output Flows: Selected Section
Description: Sorts all students by their assigned section.
Sort By Lab # Process
Input Flows: Student List
Output Flows: Selected Lab Number
Description: Sorts all students by each assigned lab number.
Database Data Store
Input Flows: Selected Section, Selected Lab Number
Output Flows: Student List, Student List
Description: Database containing usernames, passwords, submitted lab files,
graded lab files, grading key, and the grading template.
Location – Lecture
Instructor – View Feedback – Level 3.3
Error Report Request Data Flow
Source: View Error Reports
Destination: Database
Description: Lecture Instructor’s request to view student’s error report.
Error Report File Data Flow
Source: Database
Destination: View Error Reports
Description: Student’s error report after grading by the system.
File Request Data Flow
Source: View Submitted Files
Destination: Database
Description: Lecture Instructor’s request to view student’s lab files.
Student Lab File Data Flow
Source: Database
Destination: View Submitted Files
Description: Student’s original lab files that were submitted to the system.
View Error Reports Process
Input Flows: Error Report File
Output Flows: Error Report Request
Description: Displays student’s error reports to the lecture instructor.
View Submitted Files Process
Input Flows: Student Lab File
Output Flows: File Request
Description: Displays student’s original lab files that were submitted to the
system.
Database Data Store
Input Flows: Error Report Request, File Request
Output Flows: Error Report File, Student Lab File
Description: Database containing usernames, passwords, submitted lab files,
graded lab files, grading key, and the grading template.
Location – Course
Administrator – Login – Level 4.1
Login Info Data Flow
Source: System Login
Destination: Database
Description: Sends course administrator’s login info to database.
Confirmation Data Flow
Source: Database
Destination: System Login
Description: Acceptance or rejection of login info.
Forgot Password Request Data Flow
Source: Forgot Password
Destination: Database
Description: Request for email containing password.
Email With Password Data Flow
Source: Database
Destination: Forgot Password
Description: Email containing course administrator’s password.
System Login Process
Input Flows: Confirmation
Output Flows: Login Info
Description: Confirms or rejects user’s attempt to login with username and
password.
Forgot Password Process
Input Flows: Email with password
Output Flows: Forgot Password Request
Description: Sends user an email containing password.
Database Data Store
Input Flows: Login Info, Forgot Password Request
Output Flows: Confirmation, Email With Password
Description: Database containing usernames, passwords, submitted lab files,
graded lab files, grading key, and the grading template.
Location – Course Administrator
– Sort By – Level 4.2
Selected Section Data Flow
Source: Sort By Section
Destination: Database
Description: Selection that course administrator would like to sort by section.
Student List Data Flow
Source: Database
Destination: Sort By Section
Description: Resulting student list when sorted by section.
Selected Lab Number Data Flow
Source: Sort By Lab #
Destination: Database
Description: Selection that course administrator would like to sort by lab number.
Student List Data Flow
Source: Database
Destination: Sort By Lab #
Description: Resulting student list when sorted by lab #.
Sort By Section Process
Input Flows: Student List
Output Flows: Selected Section
Description: Sorts all students by their assigned section.
Sort By Lab # Process
Input Flows: Student List
Output Flows: Selected Lab Number
Description: Sorts all students by each assigned lab number.
Database Data Store
Input Flows: Selected Section, Selected Lab Number
Output Flows: Student List, Student List
Description: Database containing usernames, passwords, submitted lab files,
graded lab files, grading key, and the grading template.
Location – Course

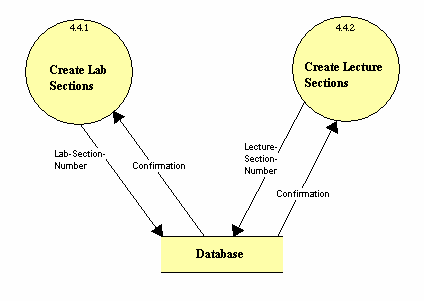

Administrator – Manage Sections – Level 4.4
Lab Section Number Data Flow
Source: Create Lab Sections
Destination: Database
Description: Lab section numbers for the semester.
Confirmation Data Flow
Source: Database
Destination: Create Lab Sections
Description: Confirmation that lab sections have been created successfully.
Lecture Section Number
Source: Create Lecture Sections
Destination: Database
Description: Lecture section numbers for the semester.
Confirmation Data Flow
Source: Database
Destination: Create Lecture Sections
Description: Confirmation that lecture sections have been successfully created.
Create Lab Sections Process
Input Flows: Confirmation
Output Flows: Lab Section Number
Description: Creates lab sections for the semester.
Create Lecture Sections Process
Input Flows: Confirmation
Output Flows: Lecture Section Number
Description: Creates lecture sections for the semester.
Database Data Store
Input Flows: Lab Section Number, Lecture Section Number
Output Flows: Confirmation, Confirmation
Description: Database containing usernames, passwords, submitted lab files,
graded lab files, grading key, and the grading template.
Location – Course

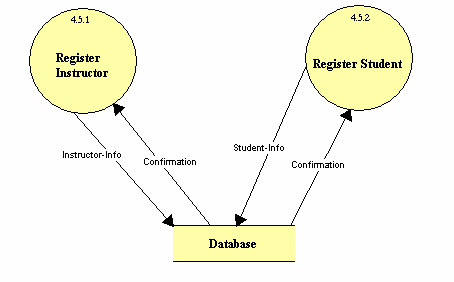

Administrator – Register – Level 4.5
Instructor Info Data Flow
Source: Register Instructor
Destination: Database
Description: Information for instructor of a lecture or lab section for the semester.
Confirmation Data Flow
Source: Database
Destination: Register Instructor
Description: Confirmation that lecture instructor has been registered successfully.
Student Info Data Flow
Source: Register Student
Destination: Database
Description: Information for student needed for registration.
Confirmation Data Flow
Source: Database
Destination: Register Student
Description: Confirmation that student has been registered successfully.
Register Instructor Process
Input Flows: Confirmation
Output Flows: Instructor Info
Description: Registers an instructor in the grading system for the semester.
Register Student Process
Input Flows: Confirmation
Output Flows: Student Info
Description: Registers a student in the grading system.
Database Data Store
Input Flows: Instructor Info, Student Info
Output Flows: Confirmation, Confirmation
Description: Database containing usernames, passwords, submitted lab files,
graded lab files, grading key, and the grading template.
Location – Course Administrator – Upload Files – Level 4.7
Sample Lab File Data Flow
Source: Upload Sample Lab Files
Destination: Database
Description: Sample lab file used for grading by the system.
Confirmation Data Flow
Source: Database
Destination: Upload Sample Lab Files
Description: Confirmation that sample lab files have been uploaded to the system
successfully.
Key File Data Flow
Source: Upload Key
Destination: Database
Description: Key file used for grading by the system.
Confirmation Data Flow
Source: Upload Key
Destination: Database
Description: Confirmation that key file has been uploaded to the key successfully.
Upload Sample Lab Files Process
Input Files: Confirmation
Output Files: Sample Lab File
Description: Uploads sample lab files to the system which are used for grading.
Upload Key Process
Input Files: Confirmation
Output Files: Key File
Description: Uploads key file to the system which is used for grading.
Database Data Store
Input Files: Sample Lab File, Key File
Output Files: Confirmation, Confirmation
Description: Database containing usernames, passwords, submitted lab files,
graded lab files, grading key, and the grading template.
Location – Course Administrator – View Feedback – Level 4.9
Error Report Request Data Flow
Source: View Error Reports
Destination: Database
Description: Course administrator’s request to view student’s error report.
Error Report File Data Flow
Source: Database
Destination: View Error Reports
Description: Student’s error report after grading by the system.
File Request Data Flow
Source: View Submitted Files
Destination: Database
Description: Course administrator’s request to view student’s lab files.
Student Lab File Data Flow
Source: Database
Destination: View Submitted Files
Description: Student’s original lab files that were submitted to the system.
View Error Reports Process
Input Flows: Error Report File
Output Flows: Error Report Request
Description: Displays student’s error reports to the course administrator.
View Submitted Files Process
Input Flows: Student Lab File
Output Flows: File Request
Description: Displays student’s original lab files that were submitted to the
system.
Database Data Store
Input Flows: Error Report Request, File Request
Output Flows: Error Report File, Student Lab File
Description: Database containing usernames, passwords, submitted lab files,
graded lab files, grading key, and the grading template.
Table Name: PERSONAL_INFORMATION
username
Type: varchar
Description: The person’s username for the system
Key: yes
Required: yes
Length: 20
first_name
Type: varchar
Description: Persons first name
Key: no
Required: yes
Length: 20
last_name
Type: varchar
Description: Persons last name
Key: no
Required: yes
Length: 20
Type: varchar
Description: Persons email address
Key: no
Required: yes
Length: 40
password
Type: varchar
Description: Persons password for the system
Key: no
Required: yes
Length: 20
account_type
Type: varchar
Description: the account type that they are assigned (ex. student, admin, lab and/or lecture instructor
Key: no
Required: yes
Length: 10
Table Name: STUDENT_FILES
username
Type: varchar
Description: The person’s username for the system
Key: yes
Required: yes
Length: 20
lab_num
Type: int
Description: the lab number that corresponds to the submitted file
Key: no
Required: yes
Length: 2
file_path
Type: varchar
Description: the location where the file is stored
Key: no
Required: yes
Length: 50
file_name
Type: varchar
Description: the name of the file submitted
Key: no
Required: yes
Length: 20
file_type
Type: varchar
Description: The type of file- can be lab, prelab or error report
Key: no
Required: yes
Length: 10
date_submitted
Type: Date
Description: the date the file was submitted to the system
Key: no
Required: yes
Length: 20
grade
Type: int
Description: the grade the student was given for this file
Key: no
Required: no
Length: 3
Table Name: SECTIONS
section_number
Type: varchar
Description: the section number that is assigned to this lab/ lecture
Key: yes
Required: yes
Length: 10
section_type
Type: varchar
Description: lab or lecture
Key: no
Required: yes
Length: 10
instructor
Type: varchar
Description: the username of the instructor teaching this section
Key: no
Required: yes
Length: 20
semester
Type: varchar
Description: the semester the section is being taught
Key: no
Required: yes
Length: 10
Table Name: GRADING_KEY_FILES
file_name
Type: varchar
Description: the name of the file submitted
Key: yes
Required: yes
Length: 20
lab_num
Type: int
Description: the lab number that corresponds with the submitted file
Key: no
Required: yes
Length: 2
due_date
Type: Date
Description: the date the file is due to be submitted by the student
Key: no
Required: yes
Length: 20
file_type
Type: varchar
Description: type of file that was submitted- Key file or sample Excel file
Key: no
Required: yes
Length: 10
file_path
Type: varchar
Description: location where the file is stored
Key: no
Required: yes
Length: 50
VI. Logical
Format of Data Files and Databases
We will be using either Oracle DBMS or mySQL for our data storage. The files submitted to the system will not be stored in the tables, instead they will be stored in a separate directory and the path to the files will be stored in the database. We will be storing the following types of fields in our database: varchar, Date and int. Each field will have a maximum size as specified in our Logical Data Stores.
This structure diagram is a graphical
representation of the structure of the Automated Excel Grading System. The first diagram displays the system itself
broken down into each user type’s interface:
Each of the user interfaces is broken
down into the tasks that can be performed by each user:
All Testing Requirements can be found in the Automated Excel Grading
System Test Plan which can be found on the Oasis Technologies Documents
page. The url below will guide you to
it.
http://oraserv.cs.siena.edu/~perm_oasis/documents.html
IX.
Subprogram Interface Specifications
The modules included with the Automated Excel Grading System are the Student, the Lab Instructor, the Lecture Instructor, and the Course Administrator. These four modules or users work independently of one another, although some data is linked to all modules through the database. Each of these modules work to achieve the desired output for the Automated Excel Grading System.
X.
Documentation Prologue for Each Routine
Function: getWorkbook()
Input: File
Output: Workbook
Description: This creates a workbook object out of the .xls file
Function: getSheet()
Input: String
Output: Sheet
Description: opens the sheet of the workbook specified by the input
parameter
Function: getCell()
Input: int, int
Output: Cell
Description: opens the cell specified by the two input parameters
Function:
getBackgroundColour()
Input: Cell
Output: Colour
Description: get the background color of the cell specified
Function: hasBorders()
Input: Cell
Output: boolean
Description: true if the cell specified has borders
Function: getBorderColour()
Input: Cell
Output: Colour
Description: gets the color of the borders on the cell
Function: getContents()
Input: Cell
Output: String
Description: gets the contents of the cell specified
Function: getFormula()
Input: Cell
Output: String
Description: gets the formula associated with the specified cell
Function: getComment()
Input: Cell
Output: String
Description: gets the comment associated with the specified cell
Function: getFont()
Input: Cell
Output: Font
Description: gets the font attributed associated with the cell
Function:
isItalics()
Input: Font
Output: boolean
Description: true if the text in the cell is Italics
Function: isBold()
Input: Font
Output: boolean
Description: true if the text in the cell is bold
Function:
getName()
Input: Font
Output: String
Description: gets the name of the font used
Function:
getPointSize()
Input: Font
Output: String
Description: gets the font size of the text
Function: getColour()
Input: Font
Output: Colour
Description: gets the color attributes of the font
Function: createWorkbook()
Input: File
Output: WriteableWorkbook
Description: creates a copy of the workbook specified
Function:
getSheet()
Input: WriteableWorkbook
Output: writeableSheet
Description: gets a sheet that can be edited from the workbook
Function: setComment()
Input: WriteableSheet
Output:
Description: inserts a comment into the writeable workbook
XI. Pseudo
Code For Each Routine
Function: getWorkbook()
Specify a file to open
Convert the file to a workbook
Return the workbook
Function: getSheet()
Open the workbook
Specify the sheet you want to open
Return the sheet
Function: getCell()
Open the workbook and sheet
Specify the cell to open
Open and return the cell
Function:
getBackgroundColour()
Specify the cell to open
Get the background color from the cell
Return the color object
Function: hasBorders()
Specify the cell to open
Get the border information from the
cell
Return the boolean
Function: getBorderColour()
Specify the cell to open
Get the border color from the cell
Return the color object
Function: getContents()
Specify the cell to open
Get the contents of the cell
Return the string representation of
the contents
Function: getFormula()
Specify the cell to open
Get the formula from the cell
Return the String representation of
the formula
Function: getComment()
Specify the cell to open
Get the comment from the cell
Return the string representation of the comment
Function: getFont()
Specify the cell to open
Get the font object from the cell
Return the font object
Function:
isItalics()
Specify the cell to open
Get the font object from the cell
Get the italics attribute from the cell
Return the Boolean value of the italics state of the text
Function: isBold()
Specify the cell to open
Get the font object from the cell
Get the bold attribute from the cell
Return the Boolean value of the bold state of the text
Function:
getName()
Specify the cell to open
Get the font object from the cell
Get the font name attribute from the cell
Return the string value of the font name of the text
Function:
getPointSize()
Specify the cell to open
Get the font object from the cell
Get the size attribute from the cell
Return the String value of the size of the text
Function: getColour()
Specify the cell to open
Get the font object from the cell
Get the color attribute from the cell
Return the Colour value of the color of the text
Function: getWorkbook()
Specify a file to open
Convert the file to a WriteableWorkbook
Return the WriteableWorkbook
Function: getSheet()
Open the WriteableWorkbook
Specify the sheet you want to open
Return the WriteableSheet
Function: setComment()
Open the Cell
Specify the text to insert into the
comment of the cell
Set the cell comment
Write the cell to the sheet
XII.
Physical Data Structures and Data File Specifications
XIII.
Packaging Specifications
The automated excel grading system will be installed on the Siena College Computer Science Departments “Oraserv” webserver, and our database will be a mySQL database. We will provide our clients with a backup copy of our entire system including the user interface and database tables in the form of a cd. Our project will be contained entirely in one directory, with multiple subdirectories, for ease of movement in the future; therefore all paths will be relative path names. The database however will not be contained within the Oraserv directory with the rest of the system, so an absolute path to the database will be used.
The information in this document was gathered from meetings with our clients, Ms. Jami Cotler and Dr. Scott Hunter, knowledge learned from Dr. Lederman’s Software Engineering lectures, the class textbook Software Engineering: A Practitioner’s Approach by Roger S. Pressman, and team websites from previous years located at: http://www.cs.siena.edu/~lederman/csis410/csis410.html
Cell: The smallest component of a Microsoft Excel workbook. Location is designated by it’s sheet, row, and column in the workbook.
Comments: Data stored in a Microsoft Excel workbook that pertains to a particular cell but is invisible unless user chooses to view the comment on a cell.
Gantt Chart: A popular type of bar chart that illustrates a project schedule including start and finish dates, tasks, and events that are to occur to complete the project
HTML: Hypertext Markup Language (HTML) is programming language used in the creation of Web pages.
Java: A programming language used for developing object oriented programs.
JavaScript: Javascript is a scripting language developed by Netscape that can interact with HTML source code, enabling Web authors to spice up their sites with dynamic content.
MySQL: An open source relational database management system (RDBMS) that uses Structured Query Language (SQL), the most popular language for adding, accessing, and processing data in a database.
PHP: PHP Hypertext Preprocessor is a widely-used, open-source, general-purpose scripting language that is especially suited for web development.
Sheet: Component of a workbook. Workbooks are composed of single or multiple sheets, each of which containing a spreadsheet. It should be noted that sheets within workbooks may access each others contents.
Structure Diagrams: graphical representation of the structure of the Automated Excel Grading System
Student User/Account: The most basic user of this software. Will be able to create their own accounts and use them to upload lab's and pre-lab's and also view their grades
Use Case Narrative: The basic functionality that the system will have for each of the users
Workbook: The type of files that Microsoft Excel uses which will be submitted to the Automated Excel Grading System for grading. Has file extension “.xls”
WriteableSheet: Denoted by the Automated Excel Grading System as a sheet that can has permissions such that the system may alter its contents.
xls: File extension for Workbook. See “Workbook.”
